Diamond Core Drill Machine users may encounters several issues. Below is a list of these problems along with their solutions:
1. Excessive Drill Bit Wear
Problem: The diamond-tipped bit wears out quickly, reducing drilling efficiency and accuracy.
Causes:
- High rotational speed without proper cooling.
- Drilling through abrasive or hard materials (e.g., concrete with rebar, hard rock).
Solutions:
- Adjust the rotational speed to match the material (lower speed for hard materials).
- Cayken has Variable Speed, Gear Speed, Stepless Speed choices. Such as 50-880RPM, Choosing the combined speed of different materials is more important.
- Use a continuous flow of coolant (water or specialized lubricant) to reduce friction and heat.
2. Off-Center Drilling (Borehole Deviation)
Problem: The borehole deviates from the intended vertical or horizontal path.
Causes:
- Unstable or uneven base for the drill machine.
- Worn-out drill stem or loose components.
- Drilling at an improper angle without proper alignment.
Solutions:
- Secure the drill machine on a stable, level surface using anchors or clamps. Besides that you can choose the function that Motor Gear Box Fixed on Guide, making the drilling More Accurancy. Cayken has the SCY-35HD Magnetic Core Drill Machine,which has this type.
- Inspect and replace worn-out parts (e.g., drill stem, bearings).
- Use a laser alignment tool to ensure the bit is correctly positioned before drilling. Thy SCY-35HD has the Laser Locator to make the coring more exactly.
- For deep holes, use a guided drilling system or a stabilizer attachment.
3. Reduced Drilling Efficiency (Slow Progress)
Problem: Drilling speed significantly decreases, affecting productivity.
Causes:
- Dull or clogged diamond bit.
- Incorrect drilling parameters (speed, pressure, coolant flow).
- Overheating due to inadequate cooling.
Solutions:
- Clean the bit to remove debris or resin buildup (use wire brush or solvent).
- Optimize parameters: increase speed for soft materials, decrease speed for hard materials, and ensure consistent coolant flow.
- Check the power supply to the machine (e.g., electrical voltage or hydraulic pressure) to ensure it meets operational requirements.
4. Excessive Machine Vibration
Problem: Unstable vibrations damage the machine or affect drilling accuracy.
Causes:
- Unbalanced drill bit or misaligned components.
- Loose bolts or fittings in the machine structure.
- Drilling into hard materials without proper support.
Solutions:
- Tighten all connections and inspect for loose parts.
- Balance the drill bit or replace it if damaged.

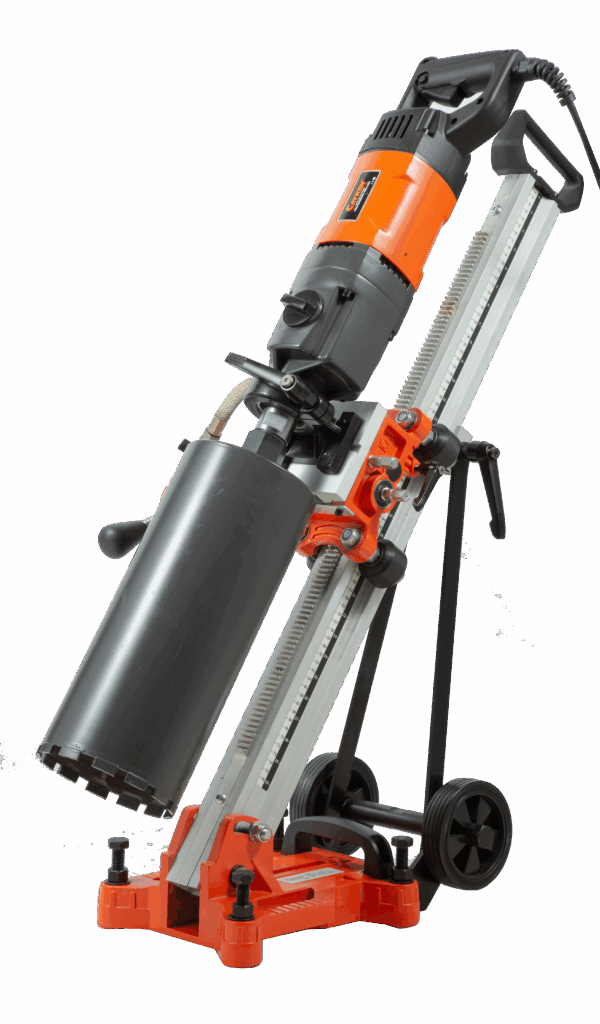

- Secure the machine with additional braces or weights to minimize movement. Such as thE CAYKEN OND-300E Diamond Core Drill Machine, which has installed the Adjustable Aluminum Allay Frame or the Adjustable Angle Bracket. They can be mounted with clamp and suitable for Handheld Core Drill Machine.
5. Coolant System Malfunctions
Problem: Inadequate coolant flow leads to overheating.
Causes:
- Clogged hoses, nozzles, or filters.
- Pump failure or low coolant level.
- Incorrect coolant type (e.g., using water for high-temperature applications).
Solutions:
- Flush and clean the coolant system regularly.
- Check the pump for blockages or mechanical issues (replace if necessary).
- Use the recommended coolant (e.g., emulsified oil for heavy-duty drilling) and maintain proper levels.
6. Safety Hazards (Dust or Noise)
Problem: Excessive dust or noise during operation poses health risks.
Causes:
- Inadequate dust collection system.
- Lack of noise insulation in the machine or workspace.
Solutions:
- Install a dust extraction system connected to the drill bit or borehole.
- Use hearing protection and ensure operators wear appropriate PPE (respirators, gloves).
- Enclose the machine in a soundproof booth for indoor operations.
7. Misalignment of Core Barrel and Bit
Problem: Misalignment causes uneven wear or core damage.
Causes:
- Worn-out connections between the barrel and bit.
- Improper installation during setup.
Solutions:
- Ensure all components (bit, barrel, drill stem) are correctly aligned and tightened before use.
- Replace worn-out adapters or connectors to maintain structural integrity.
By addressing these issues proactively and following proper maintenance and operational guidelines, users can maximize the efficiency and longevity of diamond core drill machines while minimizing downtime and safety risks. Regular training on machine operation and troubleshooting is also essential for preventing recurring problems.
CAYKEN has One Year After-Sales Service, WELCOME TO INQUIRY US!
